Tectum Roof Deck Systems
AUTHORIZED TECTUM ROOF DECK SYSTEMS BY LONG & O'ROURKE INC IN WEST CHESTER, PA
Long & O'Rourke

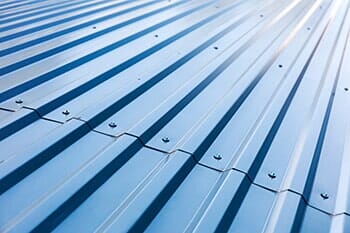

offers an extensive range of corrugated metal deck, including but not limited to: Wide Rib deck (B profile), Narrow Rib (A profile) and Intermediate Rib (F profile), long span roof decks N, J and H and composite floor deck in primed painted and galvanized coatings. All products conform to ASTM A653 Grade 33 for painted deck and Grade 40, 50, or 80, for galvanized deck. Minimum yield strength is 33,000 psi.
Long & O'Rourke also handles materials required to replace or repair poured in place gypsum decks or gypsum panels which are no longer available. Those products include formboard, bulb tees, Wire Mesh, USG Pyrofil grout (for poured in place) and SteelEdge Creteplank (for old Gypsum panels).
Also, we handle Tectum Roof deck for acoustical applications and fiberglass deck for corrosive situations.
If you require a structural roof deck solution for a commercial application, we are the source.
Long & O'Rourke also handles materials required to replace or repair poured in place gypsum decks or gypsum panels which are no longer available. Those products include formboard, bulb tees, Wire Mesh, USG Pyrofil grout (for poured in place) and SteelEdge Creteplank (for old Gypsum panels).
Also, we handle Tectum Roof deck for acoustical applications and fiberglass deck for corrosive situations.
If you require a structural roof deck solution for a commercial application, we are the source.
Tectum I Acoustical Roof Deck
Tectum I is typically used in low-slope applications and provides a thermal barrier for field-applied foam plastics. It is compatible with virtually all roof installation materials. Underside exposed joints have attractive beveled edges. LS (long span) panels are available with steel channel reinforcement. The Tectum I Roof Deck System consists of standard Tectum panels in either plank or tile configurations.
Tectum III & Tectum IIIP Acoustical Roof Deck
The Tectum III roof deck panel is a composite of a 1½" or thicker Tectum substrate, Dow Styrofoam® brand XPS (extruded polystyrene) insulation 1½" to 8" thick and 7/16" OSB (oriented strand board) sheathing with a slip-resistant surface. Tectum III panels are typically used in sloped applications where insulation and a nailable surface are required.
Tectum IIIP roof deck is made of the same components as Tectum III, but with an edge detail specifically designed for use over high-humidity applications such as swimming pools and ice arenas. The detail, when properly sealed with urethane adhesive, provides for a continuous vapor retarder from panel to panel in all directions.
All Tectum roof deck composite panels are bonded with code-listed structural adhesives.
Tectum E & Tectum E-N Acoustical Roof Deck
The Tectum E roof deck panel is a composite of a 1½” or thicker Tectum substrate, EPS (expanded polystyrene) insulation and 7/16“ OSB sheathing with a slip-resistant surface. The EPS core exceeds the requirements of ASTM C-578 Type I and bears the UL classification mark.
The Tectum E-N roof deck panel is a composite of a 1½” or thicker Tectum substrate, NEOPOR® GPS (Graphite Enhanced Polystyrene) insulation and 7/16“ OSB sheathing with a slip-resistant surface. The NEOPOR® GPS core exceeds the requirements of ASTM C-578 Type I and bears the UL classification mark.
All Tectum roof deck composite panels are bonded with code-listed structural adhesives.
Tectum V Acoustical Roof Deck
Introducing the newest innovation in longer-span structural roof decks: Tectum V.
The Tectum V roof deck panel is a composite of a 1½" Tectum substrate, ½" NEOPOR® GPS (Graphite Enhanced Polystyrene) insulation, 7/16" OSB sheathing, 6" NEOPOR® GPS insulation, and 7/16" OSB sheathing with a slip-resistant surface. Components are bonded with code-listed structural adhesives. The NEOPOR® GPS core exceeds the requirements of ASTM C-578 Type I and bears the UL classification mark. Tectum V can span up to 12 feet.
The Tectum V roof deck panel is a composite of a 1½" Tectum substrate, ½" NEOPOR® GPS (Graphite Enhanced Polystyrene) insulation, 7/16" OSB sheathing, 6" NEOPOR® GPS insulation, and 7/16" OSB sheathing with a slip-resistant surface. Components are bonded with code-listed structural adhesives. The NEOPOR® GPS core exceeds the requirements of ASTM C-578 Type I and bears the UL classification mark. Tectum V can span up to 12 feet.
Why Tectum?
- Easy to work with and install
- Cost effective
- Low maintenance
- Abuse resistant
- Nailable top surface
- Acoustical textured interior finish
- Class A Rated
